IP65 3CCT Available LED Downlight 5W/7W

Basic Parameters

•Model Numbers:

–IP65-DL-5W-CCT (5W, 560LM)

–IP65-DL-7W-CCT (7W, 700–800LM)

•Input Power: 5W / 7W (±5%)

•Luminous Flux:

–5W: 560LM

–7W: 700–800LM

•LED Chip: High-efficiency SMD LEDs

•Color Temperature (CCT):

–3-Step Tunable via Dial Switch: 3000K (Warm) / 4000K (Neutral) / 5000K (Cool)

•Color Rendering Index (CRI): ≥80 (≥90 optional)

•Beam Angle: 110° (wide flood beam)

Electrical Parameters

• Input Voltage: AC 85–265V (universal)

• Frequency: 50/60 Hz

• Power Factor (PF): ≥0.9

• Driver: Built-in constant current driver (non-dimmable)

– Dimmable Option: TRIAC/0–10V (specify when ordering)

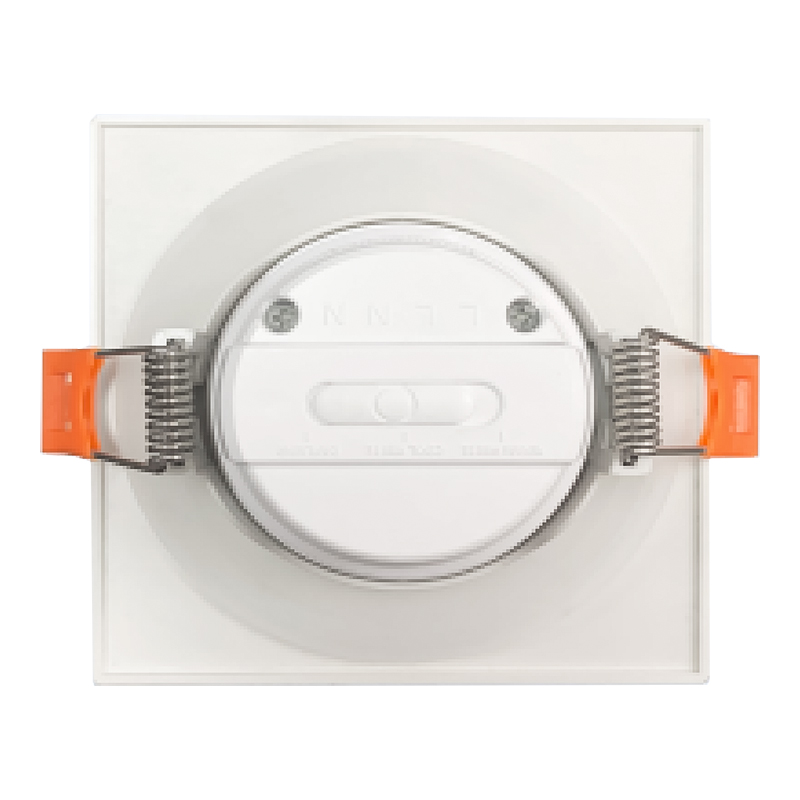

• CCT Switching: Physical dial switch (selectable before installation)

Material & Construction

• Housing: Plastic-coated aluminum (PBT + die-cast aluminum base)

• Bezel Options:

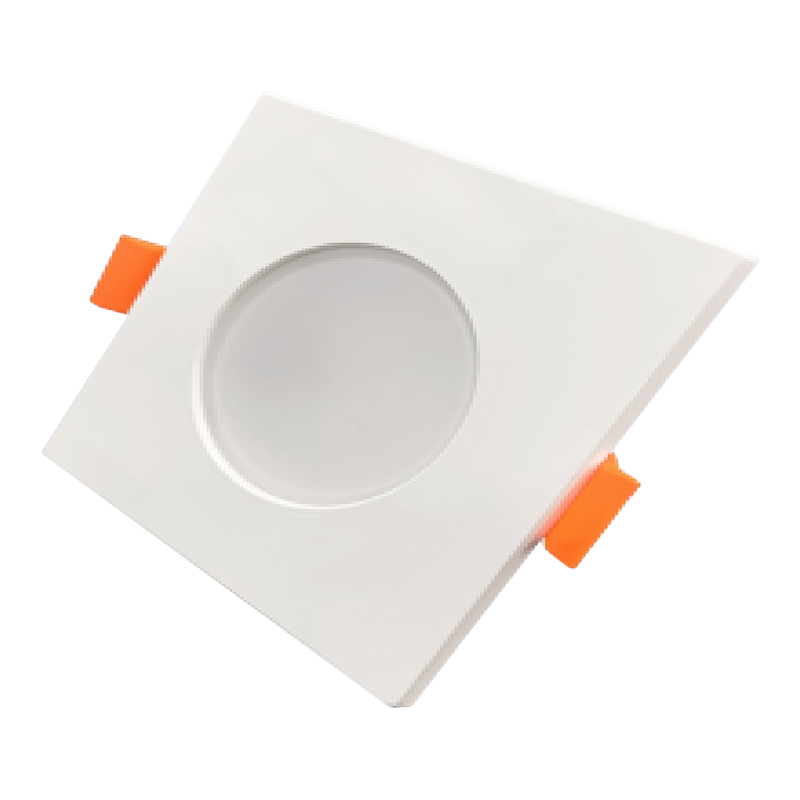

– Shape: Round (default) / Square (optional)

– Color: White / Black / Nickel-plated

• Lens: PMMA diffuser (110° wide beam, anti-glare)

• Installation: Spring clip mounting (IP65 gasket included)

Thermal & Mechanical

• Heat Dissipation: Aluminum base + plastic insulation (optimized thermal management)

• Operating Temperature: –20°C to +50°C

• Ingress Protection (IP): IP65 (dustproof & waterproof)

• Cutout Dimensions: Ø63mm

• Product Dimensions: Ø90mm × H50mm

Optical & Performance

• Anti-Glare Design: Frosted diffuser (UGR<22)

• Efficacy: 100–110 lm/W

• Lifespan: 30,000 hours (L70)

Certifications & Compliance

• Safety: CE, RoHS, EN/IEC 60598

• EMC: EN 62493, EN 61000-3-2

• Warranty: 3 years

Packaging

• Unit Dimensions: Ø90mm × 50mm

• Weight: 120g (5W) / 150g (7W)

• Packaging: 10pcs/box (foam-protected)

Ordering Guide

• Bezel Shape: Round (default) / Square (specify)

• Bezel Color: White / Black / Nickel-plated

• CCT Selection: Pre-set via dial switch (3000K/4000K/5000K)

Notes for Installation

• Ensure the IP65 gasket is properly sealed during installation.

• Dial-switch CCT must be set before installation (located on the driver).

• For square bezels, confirm cutout compatibility (additional template provided).

Let me know if you need adjustments (e.g., driver details, custom CCT options)!

Applications

• Outdoor: Porches, garden lighting (IP65 rated)

• Commercial: Bathrooms, kitchens, covered walkways

• Industrial: Warehouses, garages
