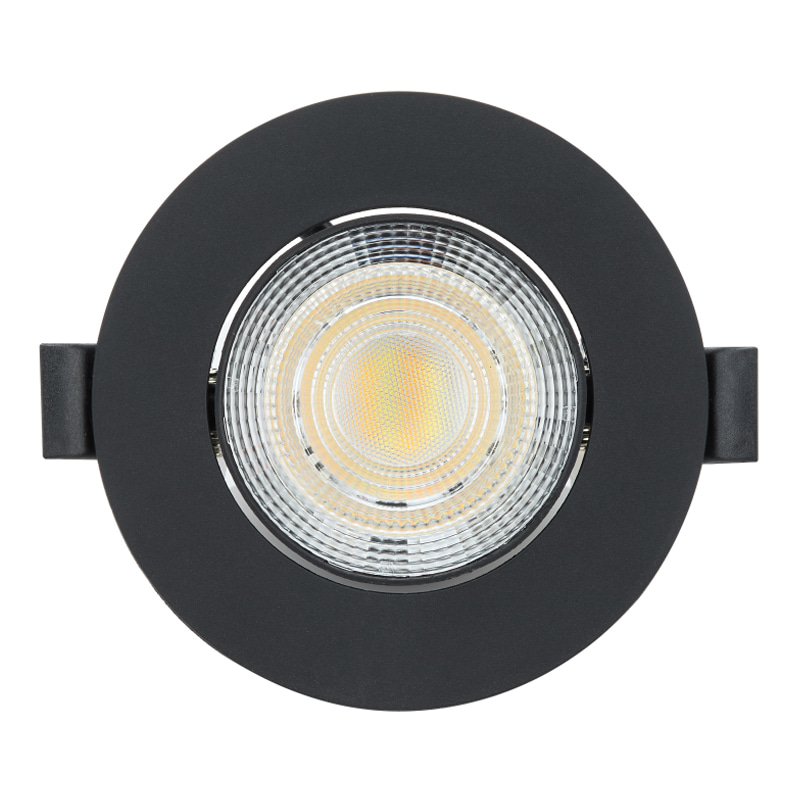

3CCT & Wattage Selectable LED Downlight

Basic Parameters

• Model Number: DL-3CCT-9IN1

• Input Power: 3W / 5W / 7W (selectable via dial switch)

• Luminous Flux:

–3W: 255LM

–5W: 425LM

–7W: 595LM

• LED Chip: High-efficiency SMD/CSP LEDs

• Color Temperature (CCT):

–3-Step Tunable (Dual Dial Switch): 3000K (Warm) / 4000K (Neutral) / 6500K (Cool)

• Color Rendering Index (CRI): ≥80 (≥90 optional)

• Beam Angle: 24° / 36° / 60° (optional, specify when ordering)

Electrical Parameters

• Input Voltage: AC 85–265V (universal)

• Frequency: 50/60Hz

• Power Factor (PF): ≥0.9

• Driver: Built-in constant current driver (non-dimmable)

– Dimmable Option: TRIAC / 0–10V (optional)

• Adjustment Method: Dual Dial Switch (for CCT & Wattage)

Material & Construction

• Housing: Plastic-coated aluminum (PBT + die-cast aluminum, high heat dissipation)

• Bezel Options:

– Shape: Round (default) / Square (optional)

– Color: White / Black / Nickel-plated

• Lens: PMMA optic lens (anti-glare, UGR<19)

• Installation: Spring clip mounting (tool-free, IP20 rated)

Thermal & Mechanical

• Heat Dissipation: Optimized aluminum base + plastic insulation

• Operating Temperature: –20°C to +50°C

• Ingress Protection (IP): IP20 (indoor use)

• Cutout Size: Ø68mm

• Product Dimensions: Ø90mm × 42mm (H)

Optical & Performance

• Anti-Glare Design: Recessed lens (UGR<19)

• Luminous Efficacy: 85–95 lm/W

• Lifespan: 30,000 hours (L70)

Certifications & Compliance

• Safety: CE, RoHS, EN/IEC 60598

• EMC: EN 62493, EN 61000-3-2

• Warranty: 3 years

Packaging

• Unit Dimensions: Ø90mm × 42mm (H)

• Weight: 140g

• Packaging: 10pcs/box (foam-protected)

Ordering Guide

• Bezel Shape: Round (default) / Square (optional)

• Bezel Color: White / Black / Nickel-plated

• CCT & Wattage: Pre-set via dual dial switch (3000K/4000K/6500K & 3W/5W/7W)

Notes for Installation

• Dual dial switches must be set before installation (located on the driver).

• Ensure proper heat dissipation in enclosed ceilings.

• For square bezels, confirm cutout compatibility (additional template provided).

Why Choose This Product?

√ HOT SELLING! – Ultra-flexible for residential & commercial lighting.

√ Perfect for Renovations – No need to replace fixtures; adjust CCT & brightness as needed.

√ Easy Installation – Spring clip mounting fits standard Ø68mm cutouts.

Let me know if you need any modifications (e.g., driver specs, test reports)!

Applications

•Residential: Living rooms, kitchens, bedrooms

•Commercial: Retail stores, galleries, offices

•Hospitality: Hotels, restaurants, bars
