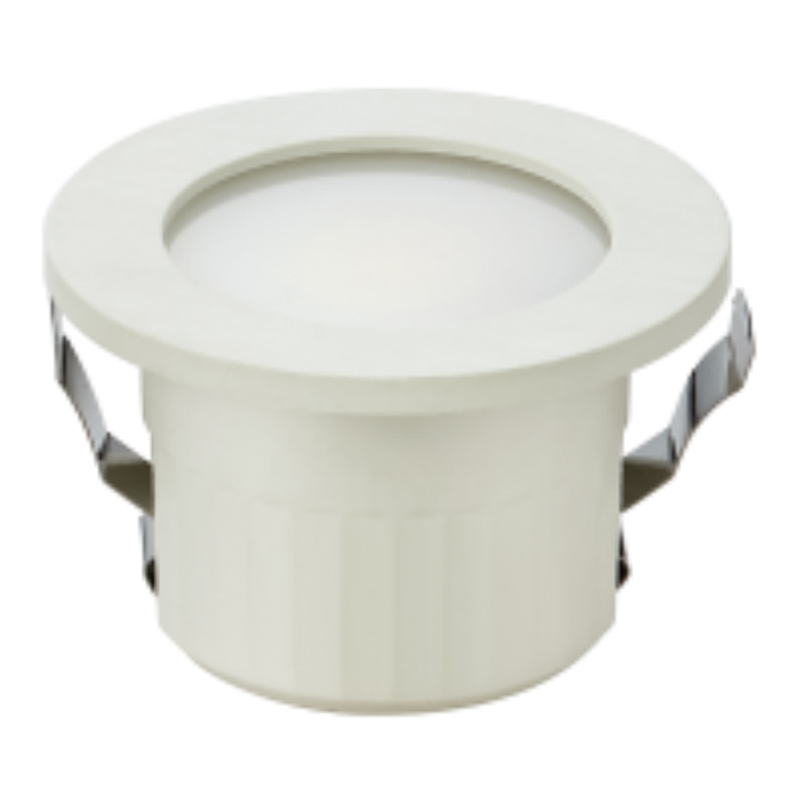

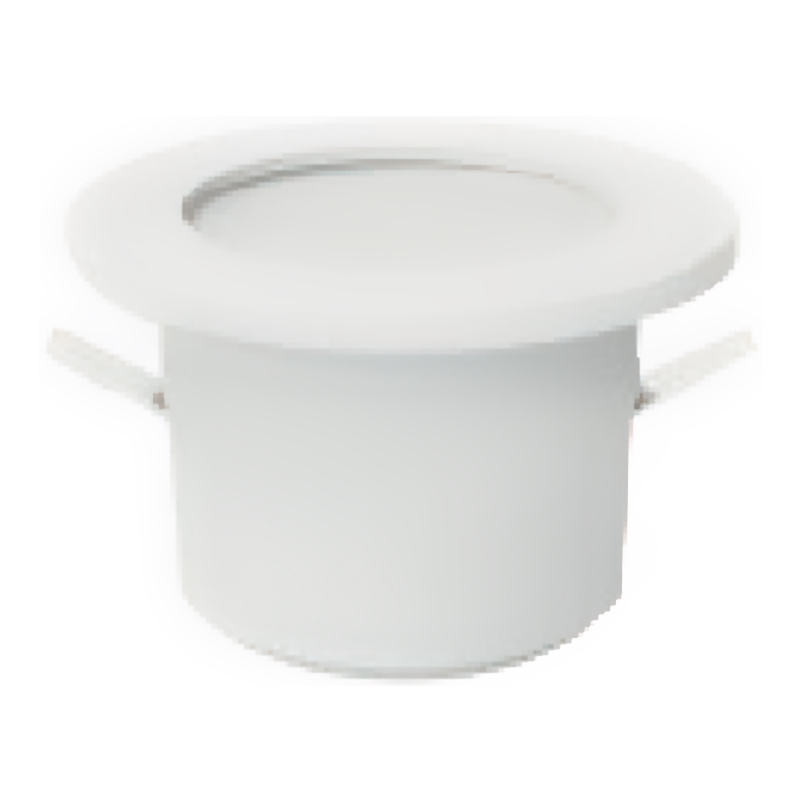

3CCT LED Mini Downlight LIGHT 3W

Basic Parameters

•Model Number: 3XCCT-DL-3W

•Input Power: 3W (±5%)

•Luminous Flux: 240–300 lm

•LED Chip: High-efficiency SMD/CSP LED

•Color Temperature (CCT):

–Tunable via DIP Switch: 3000K (Warm) / 4000K (Neutral) / 5000K (Cool)

•Color Rendering Index (CRI): ≥80 (≥90 optional)

•Beam Angle: 120° (wide flood beam)

Electrical Parameters

•Input Voltage: AC 85–265V (universal)

•Frequency: 50/60 Hz

•Power Factor (PF): ≥0.9

•Driver: Built-in constant current driver (non-dimmable)

–Dimmable Option: TRIAC/0–10V (specify when ordering)

•Input Wire: 2×0.75 mm² (standard length: 15–20cm)

Material & Construction

•Housing: Plastic-coated aluminum (PBT/PC + aluminum heatsink)

•Bezel/Ring:

–Standard: White face ring

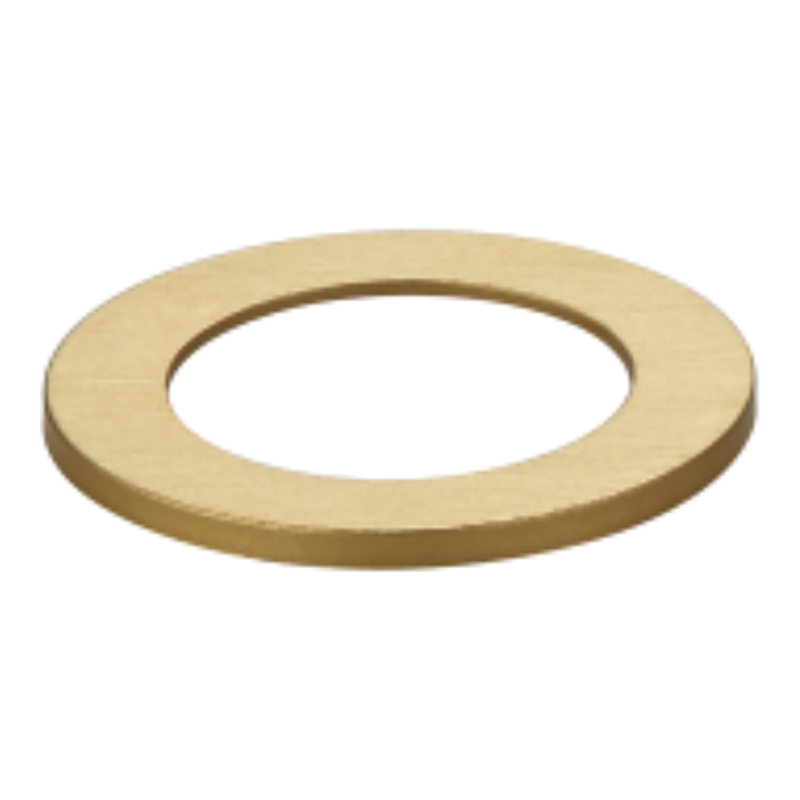

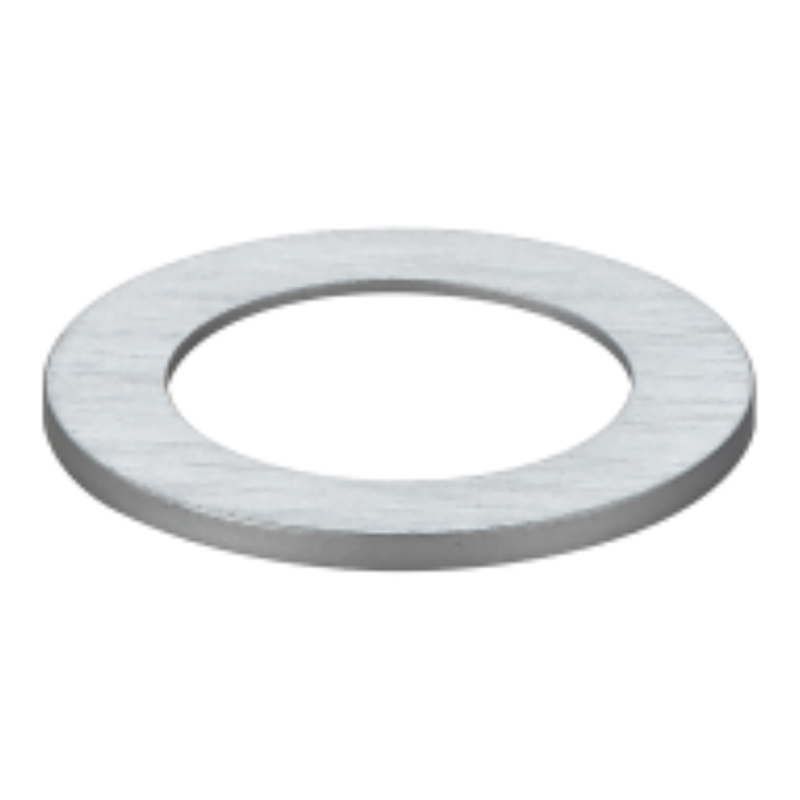

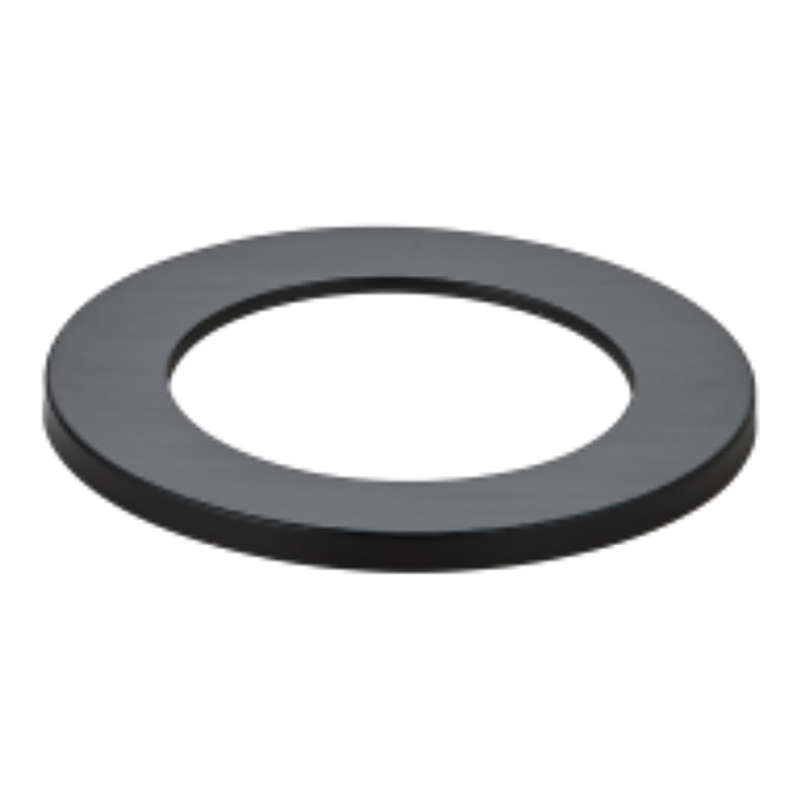

–Optional: Gold/Silver/Gray face rings (detachable/replaceable)

•Cover: Flat diffuser (PMMA/PC material, anti-glare)

Thermal & Mechanical

•Heat Dissipation: Aluminum base with plastic outer shell

•Operating Temperature: –20°C to +40°C

•Ingress Protection (IP): IP20 (indoor use)

•Installation: Spring clip mounting (cutout Ø55–75mm)

Optical & Performance

•Lens/Diffuser: Flat PMMA/PC cover (120° wide beam)

•Efficacy: 80–100 lm/W

•Lifespan: 25,000–30,000 hours (L70 standard)

Certifications & Compliance

•Safety: CE, RoHS, EN/IEC 60598

•EMC: EN 62493, EN 61000-3-2

•Warranty: 2–3 years

Packaging

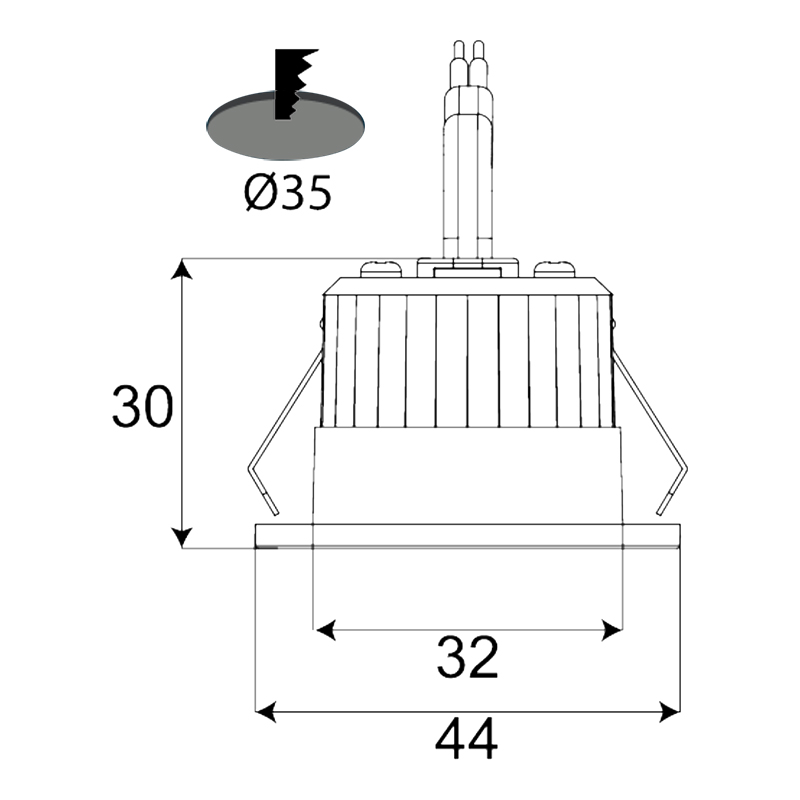

•Unit Dimensions: Ø60–80mm, H30–50mm

•Weight: 80–120g

•Packaging: 10–20pcs/box (foam-protected)

Ordering Guide

•Face Ring Options: White (standard), Gold/Silver/Gray (optional)

•CCT Selection: Pre-set via DIP switch (3000K/4000K/5000K)

•Dimmable: Specify if required

Notes for Installation & Use

•Ensure proper cutout size and secure spring clip attachment.

•Verify CCT setting before final installation.

•For dimmable versions, confirm compatibility with existing dimmers.

Let me know if you need additional details (e.g., CAD files, test reports)!

Applications

•Residential: Living rooms, bedrooms, corridors

•Commercial: Retail shops, offices, hotels

•Accent Lighting: Wide-area illumination
