Economy GU10 LED Lamp Cup – Multi-Beam Angle

PREV：Plastic-Aluminum Hybrid GU10 Split-Type LED Lamp Cup NEXT：Standard GU10 LED Lamp Cup – Multi-Beam & Multi-Wattage

01Specification 02Customize content 03Application

Technical Specifications

Parameter	Specification
Model	Economy GU10 Lamp Cup
Wattage	5W / 7W (±10%)
Lumen Output	5W: 400LM (±10%)7W: 560LM (±10%)
Efficiency	80LM/W (typical)
Beam Angle	38° (spot), 60° (flood), 100° (flat cover), 120° (dome cover)
Color Temperature	2700K / 3000K / 4000K / 6000K
CRI	≥80 (≥90 optional)
Input Voltage	AC 180-265V (100-277V optional)
Base Type	GU10 (twist-lock)
Dimensions	Ø50mm × H55mm
Material	Plastic (PC) + Aluminum (base)
Lifespan	20,000 hours (L70)
Certifications	CE, RoHS (custom certifications at extra cost)
IP Rating	IP20 (indoor)
Dimmable	Non-dimmable (standard)

Competitive Advantages

√ Budget-Friendly: Ideal for high-volume orders (e.g., hospitality, residential projects).

√ Flexible Optics: One model supports four beam angles (reduces SKU complexity).

√ Fast Turnaround: 15-day lead time (MOQ 500pcs).

Order & Logistics

•Packaging: 100pcs/box (plain white box).

•Warranty: 1 year (extendable to 2 years for 10,000pcs+ orders).

•Shipping: FOB China (express/sea freight).

Let me know if you need to add custom branding or special certifications (e.g., UL, ERP)!

Lens Options & Applications

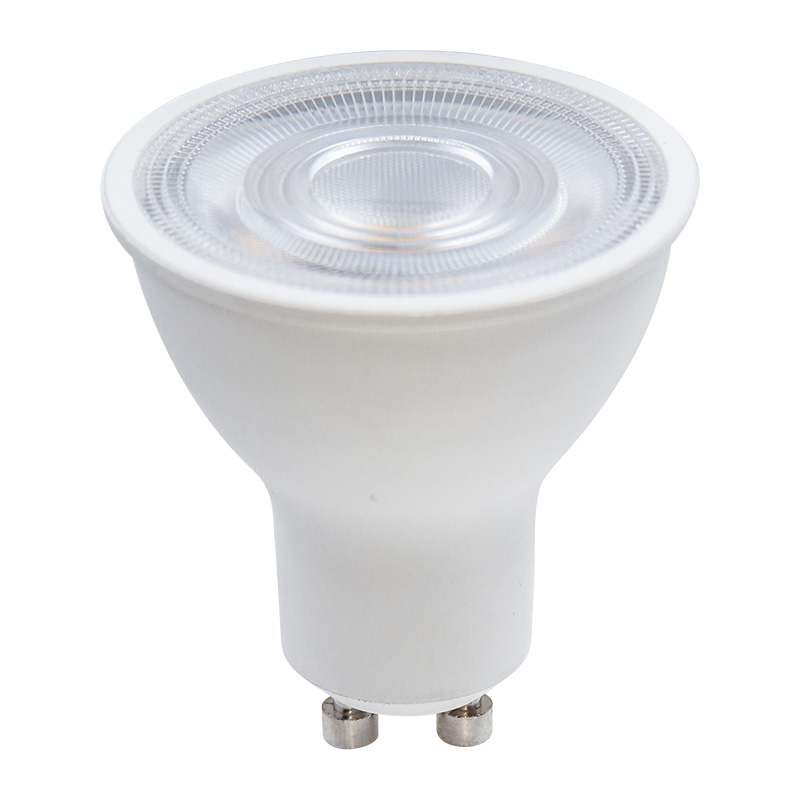

√ 38° Lens: Accent lighting (artwork, retail displays).

√ 60° Lens: General room lighting (kitchens, offices).

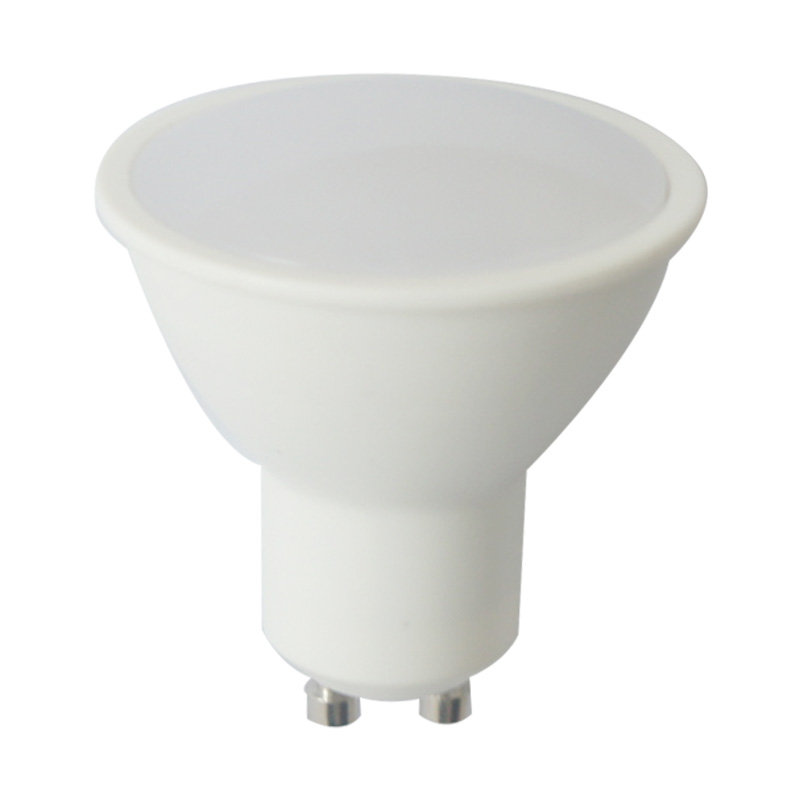

√ 100° Flat Cover: Wide ambient light (living rooms, corridors).

√ 120° Dome Cover: Ultra-wide distribution (warehouses, lobbies).
