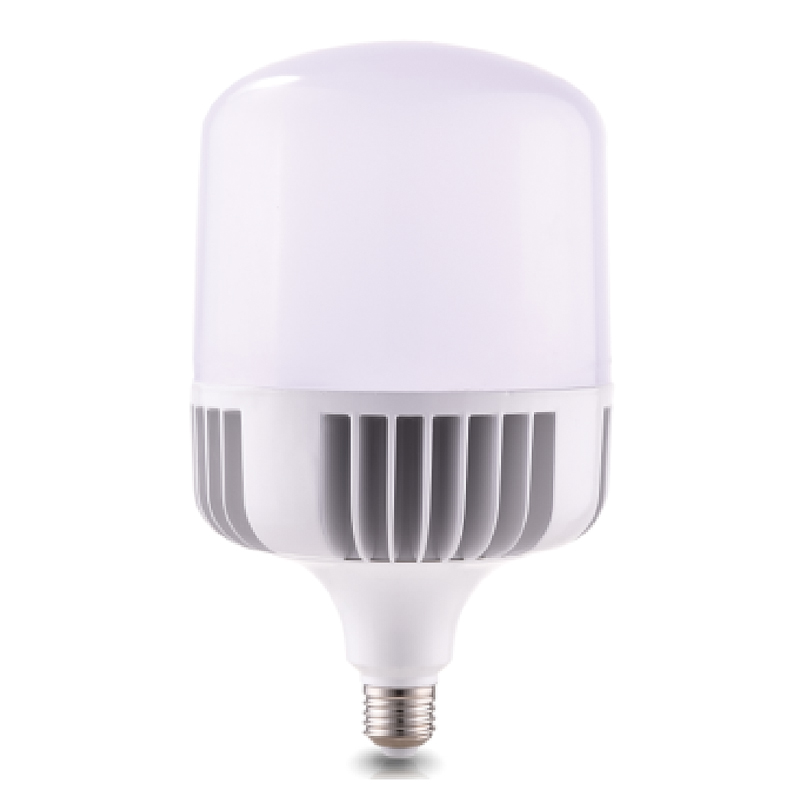

Die-Cast Aluminum T-Series LED Bulbs

Clean air, a human right

Home / Product / LED T Bulbs / Die-Cast Aluminum T-Series LED Bulbs
01Specification 02Customize content 03Application

Technical Parameters



Model

Wattage (Cold/Stable)

Lumen Efficiency

Base Type

Input Voltage

Driver

CRI

PF

Dimensions (Ø×H, mm)

LED T140 60W (T140)

60W / >54W

>100LM/W

E40/E27

AC180-265V

IC

>80

>0.92

140×255

LED T140 70W (T140L)

70W / >63W

>100LM/W

E40/E27

AC180-265V

IC

>80

>0.92

140×255

LED T140 80W (T140L)

80W / >72W

>100LM/W

E40/E27

AC180-265V

IC

>80

>0.92

140×265

LED T140 90W (T140XL)

90W / >81W

>100LM/W

E40/E27

AC180-265V

IC

>80

>0.92

140×265

LED T140 100W (T140XL)

100W / >90W

>100LM/W

E40

AC180-265V

IC

>80

>0.92

140×272

LED T160 125W (SKD/T160)

125W / >113W

>100LM/W

E40

AC180-265V

IC

>80

>0.92

160×265

LED T160 150W (SKD/T160L)

155W / >140W

>100LM/W

E40

AC180-265V

IC

>80

>0.92

160×285

Cold Wattage: Wattage at initial start-up. Stable Wattage: Wattage after the bulb has reached its operating temperature.

Additional Specifications

• Color Temperature (CCT): 3000K-6500K, customized.

• CRI (Color Rendering Index): >80

• Power Factor (PF): >0.92

• Housing Material: Die-Cast Aluminum

• Operating Temperature: -20°C to +50°C

• Storage Temperature: -30°C to +60°C

• Certifications: CE, RoHS (Other certifications available upon request)

• IP Rating: IP40 (Indoor use)



Features and Benefits

• Excellent Heat Dissipation: Die-cast aluminum housing ensures efficient heat dissipation, extending the lifespan of the LED.

• Energy Efficient: High lumen output with low power consumption.

• Stable Performance: Reliable IC driver maintains consistent light output.

• Wide Application: Suitable for industrial lighting, street lighting, high bay lighting, and more.

• Environmentally Friendly: No lead or mercury, RoHS compliant.



Why Choose Our Die-Cast Aluminum T-Series LED Bulbs?

√ Superior Heat Dissipation: Die-cast aluminum construction for maximum cooling.

√ High Efficiency: High lumen output for energy savings.

√ Durable and Reliable: 25,000-hour lifespan, 2-year warranty.

√ Versatile Applications: Ideal for industrial, commercial, and street lighting.



Ordering & Customization

•Model Prefix: LED-T (T-Series)

•Packaging: Individual cardboard boxes with protective foam.

•Customization: Custom CCT (Color Temperature), Wattage options available.



This specification provides a comprehensive overview suitable for a product page. It highlights the key features, technical details, benefits, and applications, while also incorporating SEO keywords. Let me know if you would like any adjustments or further refinements!

Applications

√  Industrial Lighting: Factories, warehouses, workshops

√  Street Lighting: Roads, highways, parking lots

√  High Bay Lighting: Gymnasiums, exhibition halls, supermarkets

√  Commercial Lighting: Shopping malls, office buildings
