Plastic-Aluminum Ceiling Light

Basic Parameters

• Model Numbers:

– PL-AL-5W (5W, Ø90×50mm)

– PL-AL-7W (7W, Ø90×50mm)

– PL-AL-9W (9W, Ø120×50mm)

• Input Power: 5W / 7W / 9W (±5%)

• Luminous Flux:

– 5W: 450–500 lm

– 7W: 630–700 lm

– 9W: 810–900 lm

• LED Chip: High-efficiency SMD/CSP LEDs

• Color Temperature (CCT):

– Standard: 3000K / 4000K / 5000K (fixed, specify when ordering)

– Optional: Tunable CCT (dial switch or wall-switch control)

• Color Rendering Index (CRI): ≥80 (≥90 optional)

• Beam Angle: 38° (precision lens for focused lighting)

Electrical Parameters

• Input Voltage: AC 85–265V (universal)

• Frequency: 50/60 Hz

• Power Factor (PF): ≥0.9

• Driver: Built-in constant current driver (non-dimmable)

– Dimmable Option: TRIAC/0–10V (specify when ordering)

Material & Construction

• Housing: Plastic-coated aluminum (PBT + die-cast aluminum base)

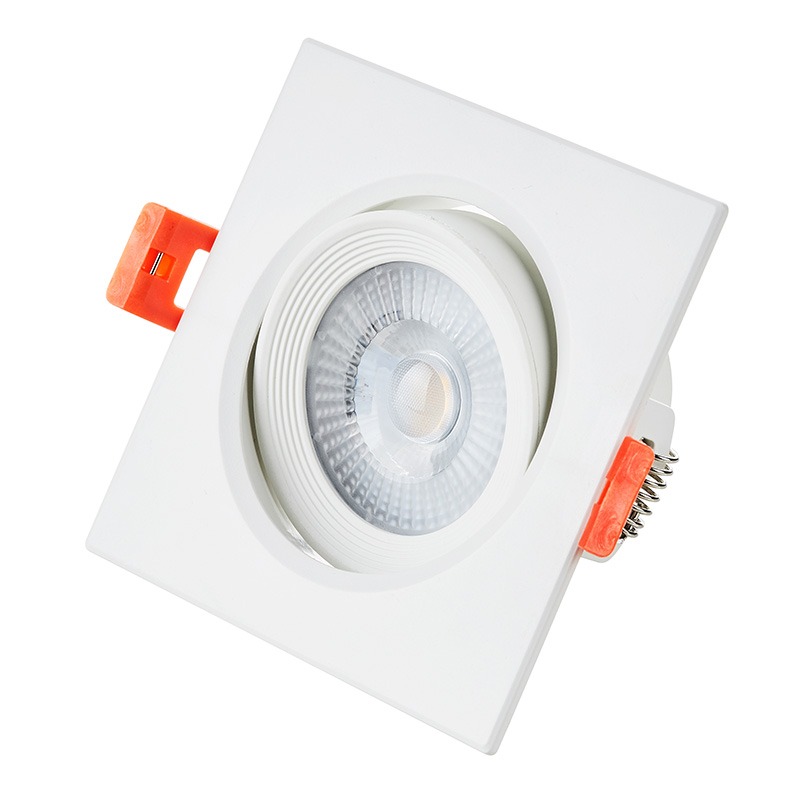

• Bezel Options:

– Shape: Round (default) / Square (optional)

– Color: White / Black / Nickel-plated (optional)

• Lens: PMMA optic lens (38° narrow beam, anti-glare)

• Installation: Spring clip mounting (tool-free)

Thermal & Mechanical

• Heat Dissipation: Aluminum base with plastic insulation (efficient cooling)

• Operating Temperature: –20°C to +50°C

• Ingress Protection (IP): IP20 (indoor use)

• Cutout Dimensions:

– 5W/7W: Ø68mm

– 9W: Ø90mm

• Product Dimensions:

– 5W/7W: Ø90mm × 50mm (H)

– 9W: Ø120mm × 50mm (H)

Optical & Performance

• Anti-Glare Design: Recessed 38° lens (UGR<19)

• Luminous Efficacy: 90–100 lm/W

• Lifespan: 30,000 hours (L70)

Certifications & Compliance

• Safety: CE, RoHS, EN/IEC 60598

• EMC: EN 62493, EN 61000-3-2

• Warranty: 3 years

Packaging

• Unit Dimensions:

– 5W/7W: Ø90mm × 50mm (H)

– 9W: Ø120mm × 50mm (H)

• Weight:

– 5W/7W: 130g

– 9W: 180g

• Packaging: 10pcs/box (foam-protected)

Ordering Guide

• Bezel Shape: Round (default) / Square (optional)

• Bezel Color: White / Black / Nickel-plated

• CCT Options: Fixed (3000K/4000K/5000K) or Tunable (specify)

• Dimmable: Specify if required

Notes for Installation

• Verify cutout size before installation (Ø68mm for 5W/7W, Ø90mm for 9W).

• For tunable CCT models, confirm control method (dial switch or wall switch).

• Ensure proper heat dissipation in enclosed ceilings.

Let me know if you need additional details (e.g., driver specs, test reports)!

Applications

• Commercial: Retail stores, galleries, offices (accent lighting)

• Residential: Living rooms, kitchens (task lighting)

• Hospitality: Hotels, restaurants (mood lighting)
